AIM Data SmartyCam 3 GP

Description

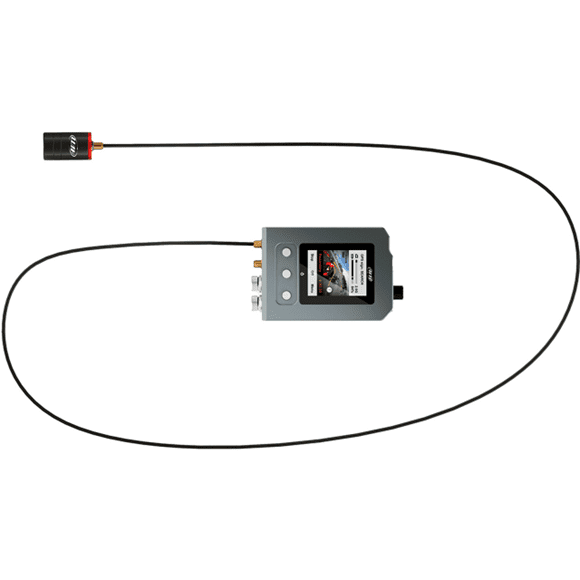

AIM Data SmartyCam 3 GP

The ultimate motorsport camera

The new SmartyCam 3 GP camera has been designed for motorsport with a single purpose:

PROVIDING GREAT VIDEOS INCLUDING ALL INFORMATION YOU NEED

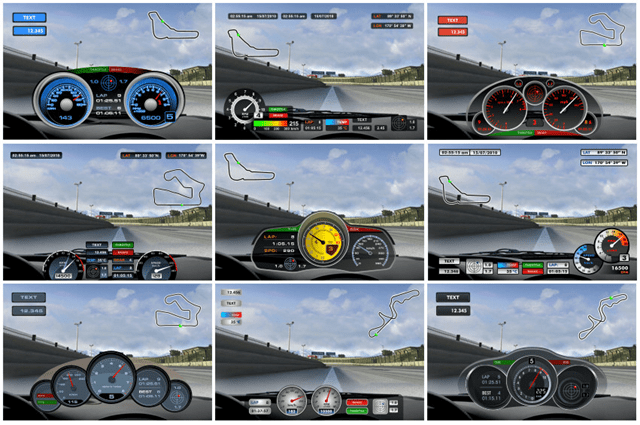

• Configurable overlays – SmartyCam 3 GP camera overlays all the data from both GPS and AiM loggers connected to your ECU.

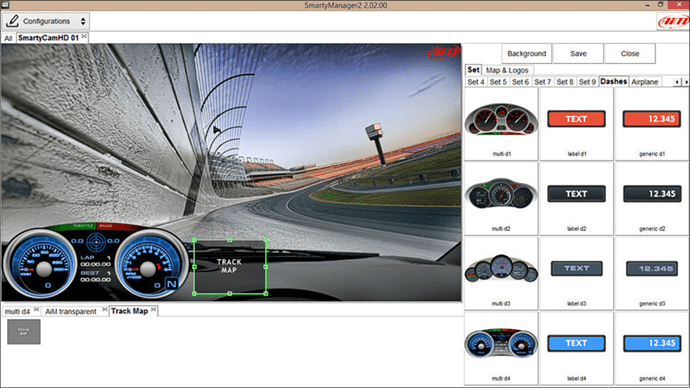

  • With RaceStudio 3 software you can configure your overlays in a virtually infinite variety of ways: add your logo and the track map and choose your graphic objects from a list of pre-determined sets with same layout or even single objects from different sets. Your videos will be truly “yours” in all details, from the data to their graphic layout.
• Video analysis with Analysis 3
  • The video of a whole session, once downloaded on your PC, can now be split – with a simple click – in individual videos of each lap: so that you can simultaneously watch two of them and check where you were faster or slower.
  • The same operation can be performed with a SmartyCam 3 GP video recorded on the same track: you will be able to compare your best lap with your friends personal best!
• Automatic track selection
  • SmartyCam 3 GP automatically recognizes the track its racing on and easily draws it and calculate lap number, lap times and rolling times.
• Automatic data and video synchronization
  • In case data in the MP4 are not enough for your analysis, simply import video file and data from your AiM logger and the software will automatically synchronize position on the track, video frame and data on the graph.
• Video and data in the same file
  • Your video and the most important data in the same MP4 file.

•  CAN connection
  • Connector labelled EXP is used to CAN connect the camera with AiM systems. In the CAN network SmartyCam 3 GP can be a master or a slave and can be connected to different AiM devices.
  • The second CAN is dedicated to ECU connection with more than 2,000 protocols supported, constantly updated.
  • This connection can also be configured to communicate with other devices through RaceStudio 3 software.
• USB-C connection
  • USB-C port, placed in the side flap, makes any transfer from PC to SmartyCam 3 GP and vice versa easy and fast.
  • Using the proper cable, USB-C port makes it possible to send configuration, updating, tracks and settings to SmartyCam 3 GP and to download data and video after every session.
•  Full internal datalogger
  • All data received from the CAN bus and from the internal sensors are recorded in .mp4 files produced at the end of your test, your SD (or MSD) Card contains all the information you need for a deep data analysis. SD card sold separately.

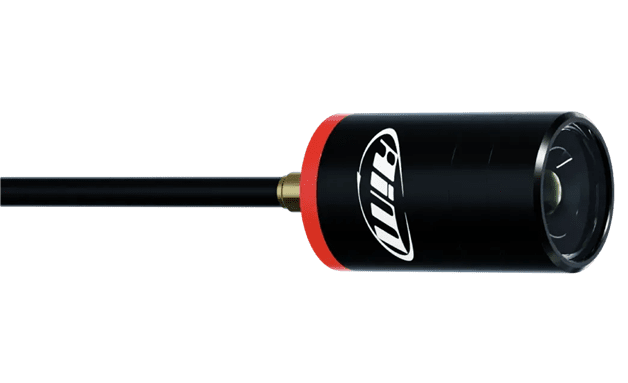

• Designed for the extreme
  • An on-board camera designed for motorsport must guarantee great resistance against the extreme working conditions typical of racing and against the most adverse weather.
  • That is why SmartyCam 3 GP is IP65 waterproof made in machinery molded aluminum, PA fiberglass reinforced and features sapphire frontal glass for a complete protection.
• Automatic Start & Stop
  • You have other things to think about while you are racing and SmartyCam 3 is aware of that. That is why it switches on/off automatically and starts/stops recording in the same way.
• No “Wave Effect”
  • with Global Shutter CMOS
    • Engine rumble causes vibrations, which are a big problem for video recording. You will never experience again that seasick “wave effect” you get watching videos recorded by a generic camera when the car rolls at 7,000 RPM.
    • SmartyCam 3 cameras have been designed for that environment and for those vibrations.
• High quality with small size video files
  • Generic HD cameras are focused on the highest pixels number. The result is that their video files are far too large, taking too much memory; for this reason SmartyCam 3 videos have the same quality as other Full HD cameras (1920×1080 pixels @ 60 fps) but their files are smaller because the H.264 compression system parameters have been optimized to perfectly balance video quality and file size.
